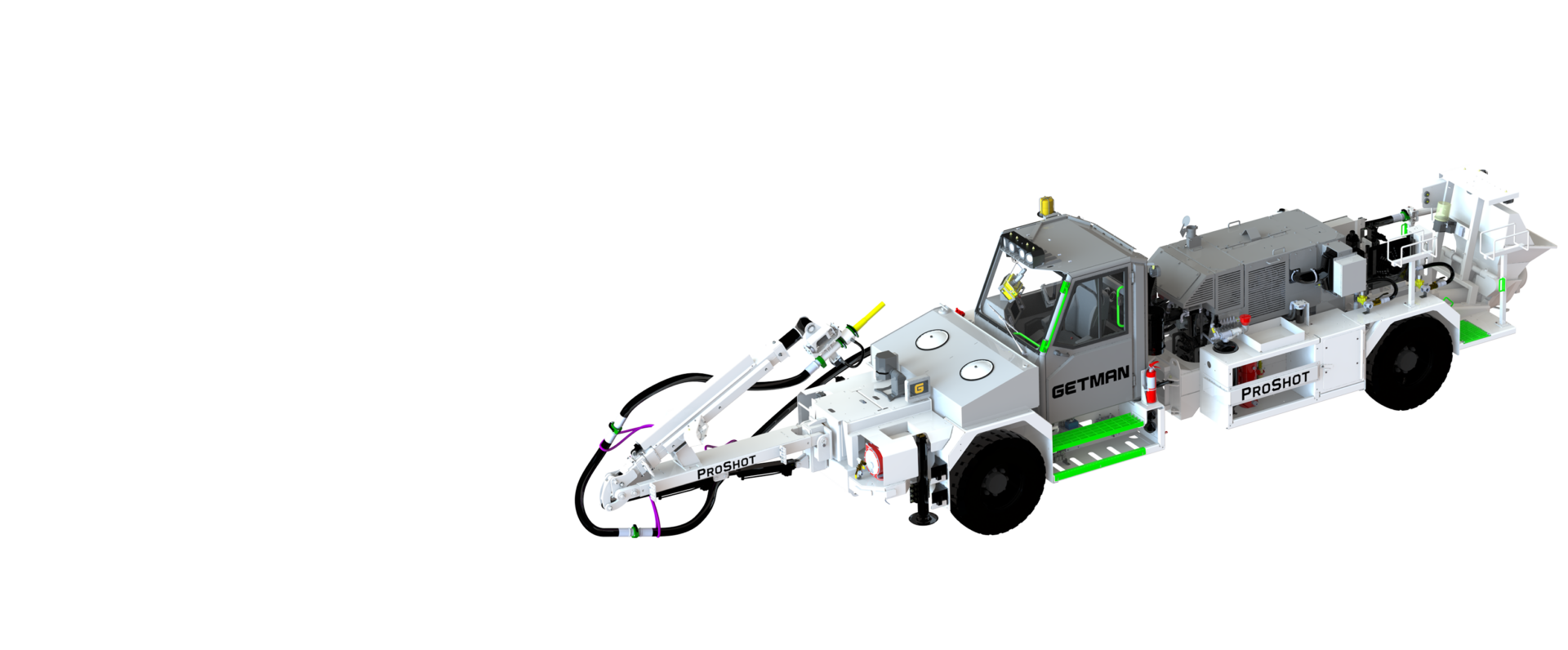

(Coming Soon) ProShot™ Concrete Sprayer

Description

The ProShot™ Concrete Sprayer provides a fully-outfitted Shotcrete sprayer that delivers a smooth, consistent application of Shotcrete in any stage of the underground mining cycle. It features an unparalleled boom coverage area, extending the spray coverage in normal drifting situations. Optimal boom positioning minimizes material waste and improves coverage when shooting blind corners and bulkheads.

The ProShot™ Concrete Sprayer can maintain optimal horizontal positioning when spraying tunnels ranging from 3.5 m by 3.5 m (11.5 ft by 11.5 ft) up to 10.3 m wide by 6.2 m high (34 ft by 20 ft), while covering 4.3 m (14 ft) of advance from a single setup.

The ProShot™ design reflects Getman’s 65 years of serving the mining industry, maintaining a balance between a maneuverable chassis size and a layout which facilitates safe and easy daily maintenance.

The ProShot diesel/hydraulic chassis is equipped for use with mine air. For concrete spraying in areas without access to mine air systems, an optional onboard hydraulically driven air compressor provides enhanced utilization.

Specs

Concrete Pump

  • Reed A40HP shotcrete pump with max theoretical output of 31 m3/hr (40 yd3/hr)
  • Cylinder bore/stroke: 152 mm × 762 mm (6 in × 127 in)
  • Maximum aggregate size: 38 mm (1.5 in)
  • Hopper capacity: 283 L (10 ft³)
  • Outlet: 127 mm (5 in)
  • Adjustable hopper height: 975 mm to 1468 mm (38 in to 58 in) height
  • Hinged grate on hopper



Admixture Dosing System

  • Accelerator dosing system automatically synchronizes to the actual concrete pump output without requiring further input from the operator
  • 378 L (100 gal) onboard stainless steel admixture tank with sight gauges
  • Peristaltic admixture pump with programmable range of 0-7.56 L/min (0-2 gpm) @ 8 bar (115 psi)



Controls

  • Remote control for boom/nozzle positioning with Shotcrete pump output
  • Umbilical remote
  • Wireless remote
  • Stow/Unfold boom controls in driver station
  • Available boom repositioning during tramming
  • Dosing adjustment located on carrier



Nozzle

  • 63.5 mm (2.5 in) diameter venturi-style nozzle
  • Equipped with admixture and compressed air connections
  • 360° nozzle rotation with 140° tilt
  • Automated oscillating nozzle sweep feature



Boom Coverage

  • Upper Coverage Envelope (H × W × D): 6.2 m × 10.2 m × 3 m (16.4 ft × 26.2 ft × 10 ft)
  • Lower Coverage Envelope (H × W × D): 2.9 m × 3.6 m × 3 m (9.8 ft × 12 ft × 10 ft)
  • Maximum vertical spray reach: 11.2 m (36.7 ft)
  • Maximum horizontal spray reach: 8.4 m (27.6 ft)
  • Minimum boom unfold 3.7 m x 3.7 m (12.1 ft × 12.1 ft)
  • Stowed boom height 2540 mm (100 in)



Form Oil Package

  • 75.7 L (20 gal) pneumatic spray tank
  • 23 m (75 ft) reel and wand assembly



High Pressure Wash System

  • 30 m (100 ft) spring-return hose reel with mine water hook-up
  • Mine water supply to pump hopper and hydraulically driven high-pressure pump
  • 23 m (75 ft) reel and high-pressure wand
  • Optional onboard 75.7 L (20 gal) water tank for high-pressure wash system



Compressed Air System

  • 30 m (100 ft) spring-return hose reel with mine air hook-up
  • Optional onboard PTO-driven 5.66 m3/min (7.41 yd3/min) mechanical air compressor (requires 6-cylinder engine)
